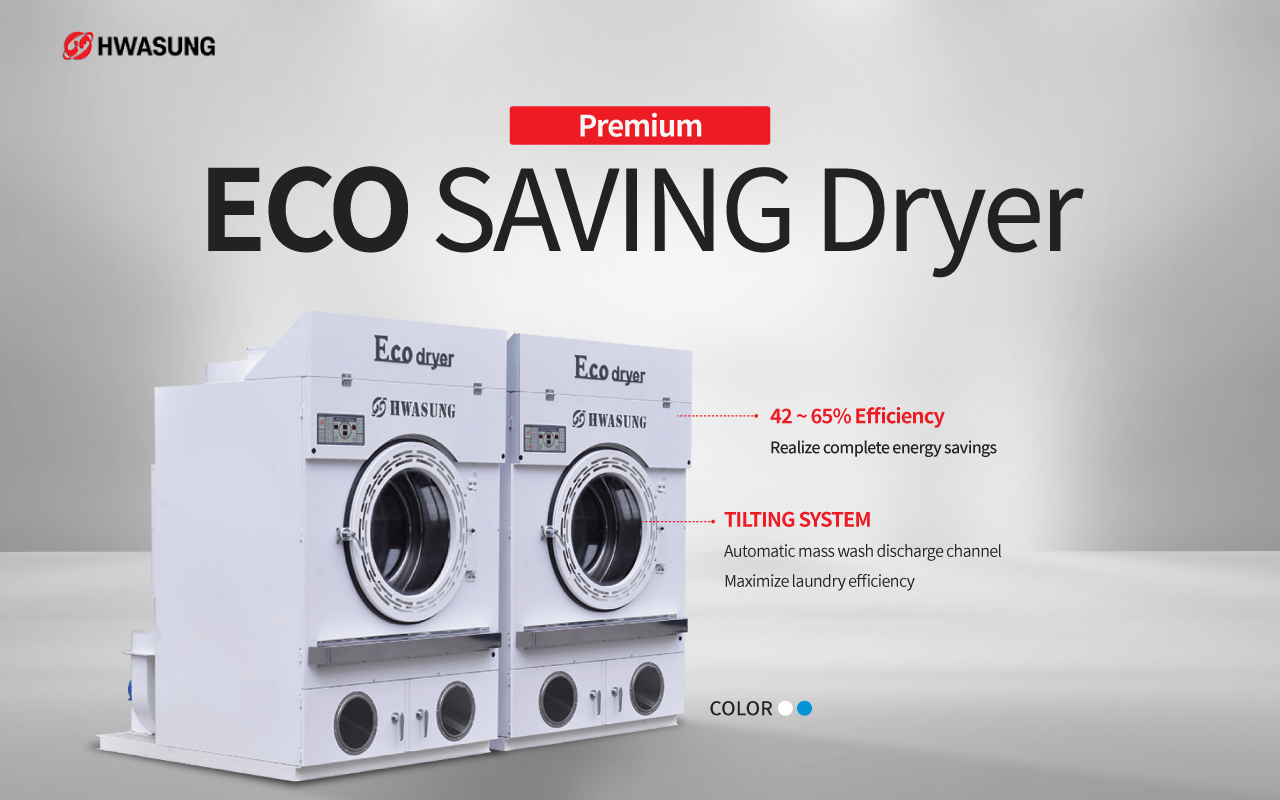

Production increase effect and Reuse energy saving by analyzing the wind tunnel structure patented for the first time in Korea, reducing the best energy supply, and reducing drying time,
As a result of recent multi-year research, the first low-cost, high-efficiency, high-function far-infrared CARBON DRYER development in Korea
Sterilization, 44-5% reduction in electricity, and time savings were achieved, and even cool down collating system patent for steam energy savings
- Prevention of drying performance degradation (removal of internal fiber lint)
- Pre-removal of odor from dried items (100% removal of contaminants)
Energy/time savings and increased production leading to higher profits and cost reductions
Low-cost & high-efficiency with a 30-minute reduction compared to regular dryers
World's first energy-saving automatic drying system development
Automatic temperature control system minimizes fabric loss and maximizes fabric softness
Achieving maximum energy savings [Elec - 43% / Steam - 60-65%]
Automatic cool air control system
FOG JET fire suppression system (optional)
Automatic laundry discharge Tilting System (100kg option available)
Drying motion that mimics natural drying—shaking, spreading, and fluttering in the wind, gently turning the fabric for delicate drying.
- Direct flame (gas) dryers apply heat directly, which can cause fiber distortion, discoloration, damage, and odors Hwasung's patented air duct design mimics natural wind It dries clothes with powerful and rich airflow, falling from various directions and heights.
- Compared to regular household dryers (160 minutes), our dryer takes only about 30-40 minutes, offering faster and more convenient use, and is quicker than other industrial drying equipment
- Unlike others that overstate capacity, Hwaseong Laundry Machinery sticks to the rated capacity for proper drying
- "Is there a dryer that saves energy while being faster and preserving fabric quality?" This question led to our development. By installing a heater box (radiator) 55% smaller than typical dryers, we achieved over 65% energy savings. The unique patent and certified external drum design minimizes fabric damage, eliminating issues like buckles, buttons, and other easily damaged materials.
- Maximizing fabric preservation, achieving over 48% energy savings, with automatic drying features and the TILTING System (automatic discharge option), we have eliminated the drawbacks of traditional dryers, earning the title of "The Most Perfect Dryer in the World." The ECO type, now over 15 years old, is still recognized for its durability and high value in industries like water parks, uniforms, hotels, and large laundromats. (Ideal for delicate drying and smaller items.)
- South Korea's first patented Tilting System enables automatic discharge, maximizing productivity, safety, and convenience (100kg/120kg/150kg/200kg only)
| MODEL | UNIT | GD 60 ECO | GD 100 ECO | |
|---|---|---|---|---|
| Capacity | kg(lbs) | 60(132)~65(143) | 100(220)~105(231) | |
| Drum | Diameter | mm(inch) | 1,300(544) | 1,500(59) |
| Depth | mm(inch) | 800(314) | 960(378) | |
| IN/OUT | A | 20(3/4)/20(3/4) | 20(3/4)/20(3/4) | |
| Moter(Drum) | HP/KW/Pole | 2/1.5/4 | 3/2.2/6 | |
| Moter(Fan) | HP/KW/Pole | 2/1.5/4 | 2/1.5/4 | |
| Duch Motor | HP/KW/Pole | 2/1.5/4 | 2/1.5/4 | |
| Duct | mm(inch) | 250(10) | 300(11) | |
| Dimensions | ㅣ*W*H(mm) | 1,400*1,550*1,940 | 1,580*1,700*2,030 | |
| Electricity Spec. | In put | Volt | Elec : 3P 380V 60Hz Carbon : 4P 380V 60Hz |
Elec : 3P 380V 60Hz Carbon : 4P 380V 60Hz |
| Power(Elec/Steam/Carbon) | Kw/h | Elec 24 / Steam 4.5 / Carbon 21 | Elec 50.4 / Steam 6 / Carbon 24 | |
| Weight | Kg(lbs) | 970(2,318) | 1,350(2,976) | |
A.
Pride of Asia
A leading industrial laundry equipment specialist and manufacturer in South Korea with 40 years of experience.
Exported to 73 countries, with 36 patents and certifications.
Not deceived by sales, promotions, or designs; it’s the founder’s philosophy of “focusing solely on quality, research, improvement, and development, and growing together with customers”
Moving forward with the trust-based foundation towards 100 years of success.
